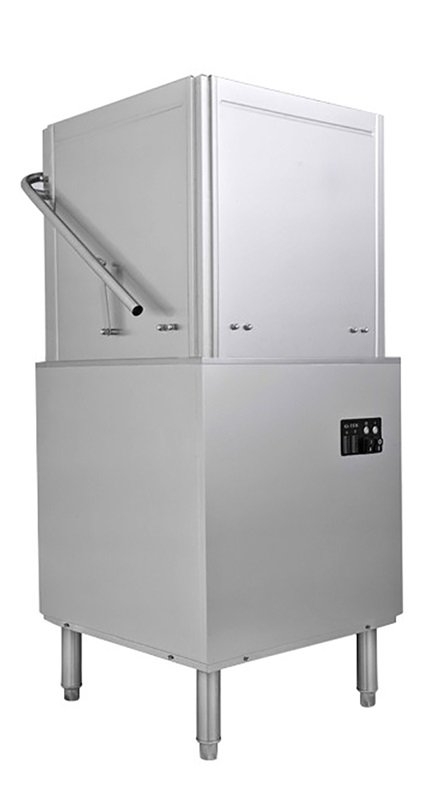

Door Type Dishwasher

• kitchen equipment
• dish washer
• stainless steel kitchen equipment
• commercial kitchen equipment

Made from 99% stainless steel construction
enhance machine life.

Debossed anti-clog
nozzles provide powerful
washing performance.

Italian rinse pump,
energy saving booster saves
30% heat loss and energy
consumption 1.25HP wash motor.

TECHNICAL DATA	D1M/TC	D1M/TC-LE1
Electrical Loading	13.5 kW (20A)	3.5 kW (15A)
Power Supply	415V / 50Hz / 3 Phase	230V / 50Hz / 3 Phase
Tank Heater	3 kW	2 kW
Booster Heater	2 x 6 kW	2 x 1 kW
Machine Capacity	60 racks 1500 dishes / hr	60 racks 1500 dishes / hr
Cycle Time	Two Cycle Selection	Two Cycle Selection
Door Opening Height	420 mm	420 mm
Rinse Usage	2.6 L / rack	2.6 L / rack
Auto Fill	Yes	Yes
Auto Door Sensor	Yes	Yes
Net Weight	128kg	128kg
Dimension	W697 x D683 x H1620	W697 x D683 x H1620
